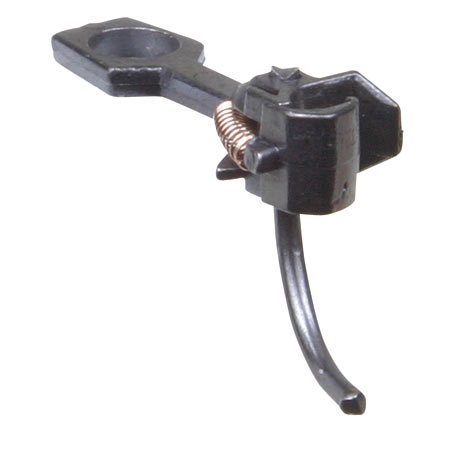

HO #5 Metal Coupler 9/32" centre (2 pce)

HO #5 Metal Coupler 9/32
  • $10.61
+
-

This industry leading coupler features an all metal standard coupler, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The NO.5® Magne-Matic® Metal Coupler may be mounted with the included #232 Gearbox or with other manufacturers cast-on coupler pockets.

The 148 Whisker® Coupler is equivalent to the NO.5® Metal Coupler.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.

Two pair per package

Package Includes:

  • (2) Pair NO.5® Metal Couplers - Medium Centerset Shank
  • (2) Pair #634 Centering Spring NO.5® Style
  • (2) Pair #232 Gearboxes
  • (2) #622 Knuckle Springs

NO.5® Metal Coupler Features:
Material -   Metal
Shank Length -   Medium (9/32") (center hole to back of coupler head)
Coupler Offset -   Centerset
Knuckle Spring -   #622
Centering System -   Standard Shank
Centering Spring -   #634 Centering Spring NO.5® Style
Head -   Standard Head
Works In Place of -   #58, #28, #118, #119, #148, #158, most medium centerset "clone" couplers
Works With -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

#232 Plastic Draft Gearboxes & Lids Features:
Material -   Insulated Plastic
Dimensions -   29/64"L x 19/64"W x 7/64"H
Works With -   NO.5®, #58, 20-Series and all Whisker® Couplers

Mounting Specifications:
Mounting Height -   29/64"
Centerline -   25/64"
Trip Pin Height -   1/32"
Center Hole -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes -   0-48 Self-Tapping or 0-80 Machine Screws (Screw length will vary)
